DETAILS
FREEDOM FROM THE LIMITATIONS OF THE ARC

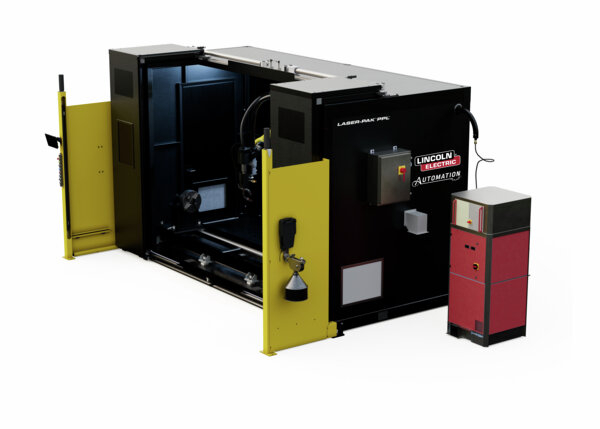

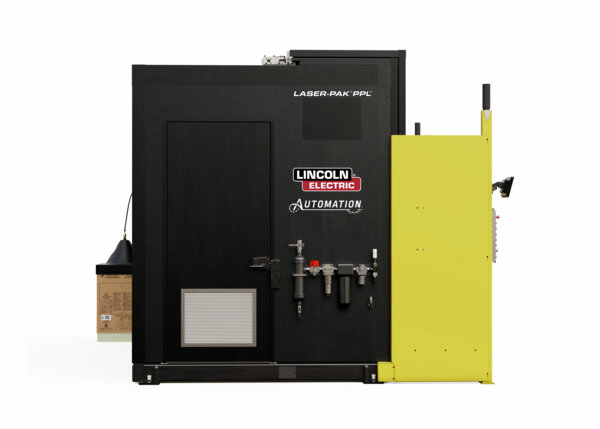

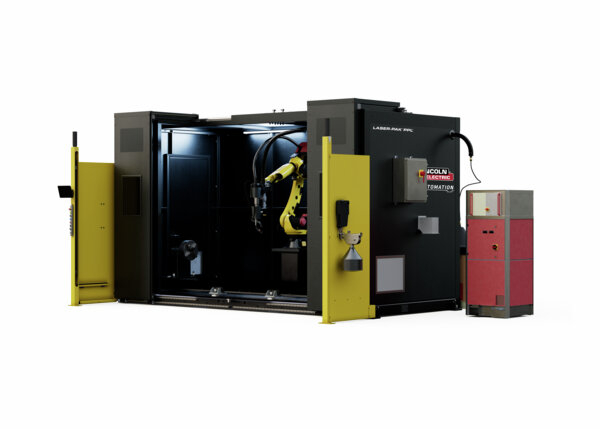

Lincoln Electric Automation™ is proud to announce a revolutionary new process: Precision Power Laser™. This process is an arc-free, hotwire laser process designed to increase deposition rates and travel speeds by heating the wire to a certain degree before entering it into the laser beam. Whether welding or cladding, this process can be implemented to improve production rates and increase quality using Laser-Pak™ PPL™ robotic systems.
Features
- “Light tight” to laser wavelength to prevent exposure outside of cell
- Interlocked operator access door
- Pneumatic sliding doors with interlocks
- Interior safety scanners
- Laser-safe viewing windows
- Light curtains for added safety
- Sliding tailstock - maximum part length: 10 ft.
- Superior efficiency compared to powdered metal processes
- Greater control of base metal dilution
- Up to 20lbs/hr deposition rate (w/8kW Laser Power)
Disclaimers
Service Information
What's Included
- Lincoln Electric Precision Power Laser package
- Laserline LDM series standalone laser tower
- Laserline OTS laser welding optical processing head
- Single-point disconnect panel - Single Arm
Documentation
Specifications
Global Attributes
| System Type | Single Zone Headstock |
| Axes for Part Rotation | 1 |
| Number of Work Zones | 1 |
| Industry/Application | Welding, Cladding, Brazing, Additive Manufacturing, Joining and Feature Building. |
| Overall Footprint Width in (mm) | 126 (3206) |
| Overall Footprint Depth in (mm) | 209 (5309) |
| Sweep in (mm) | 40 (1000) |
| Span in (mm) | 118 (3000) |
| Payload Per Zone lb (kg) | 3307 (1500) |
| Assembly Required | Yes |
| Panel Type | Solid Panels |
| Crane Access | Yes |
| Roll Up Door | No |
| Pushbutton Control | Yes |
| HMI Control | Yes |
| Power Distribution | Yes |
| Doweled Robot Mounts | Yes |
| Robot Programming Training Included | Yes |
| ANSI/RIA Compliant | Yes |
| Sensor Protected Work Zones | Yes |
| Sensor Interlocked Access Points | Yes |
| Flash Barrier Type | Automatic |
| Weld Ground Isolation | Yes |
| Laser Area Scanners | No |
| Fanuc Compatability | Yes |
| ABB Compatability | Yes |
| Kuka Compatability | Yes |
| Fume Extraction Equipment | Optional |
| Tooled/Turnkey System | Optional |
| Multi-Robot Configurations | No |
| Crown Mounted Robot | No |
| Robotic Torch Cleaning Station | No |
| Zero Friction Wire Delivery | Yes |
| Wire Detect Sensors | Optional |
| Customization Available | Yes |
Laser Specifications
| Laser Type | Diode |
| Optic Type | Fixed |
| Laser Power | 8000 Watts |
Application
| Typical Application | Structural Welding |
Warranty
| Warranty | 1 Year |
