The Right Tooling for the Right Automated Job

Durable, high-quality tooling is the foundation of every effective automated manufacturing cell.

Without sound tooling design, everything from dimensional specifications to up-time and part quality is sacrificed. To meet these requirements for automated welding, you must integrate robust, repeatable tooling that can meet tight tolerances. If your components can’t be correctly placed, held, and discharged, then your welding operation will cease to function.

From design, machining, tooling, build and runoff – Lincoln Electric’s completes each step to manufacturing our tooling completely in-house. By designing tooling with the industry’s highest quality clamps, fixtures, jigs, quick disconnects with plug-and-play communications and spatter-resistant durability, we help operations minimize downtime and maximize profits.

Our Automated Tooling Advantage

• Ensure rapid part repeatability and consistency
• Reduce errors and improve production results on complex part runs
• Lower production costs
• Increase operator safety by minimizing hazardous and physically demanding tasks
• Faster part changeover and uptime

KMT TN Rand 597.jpg

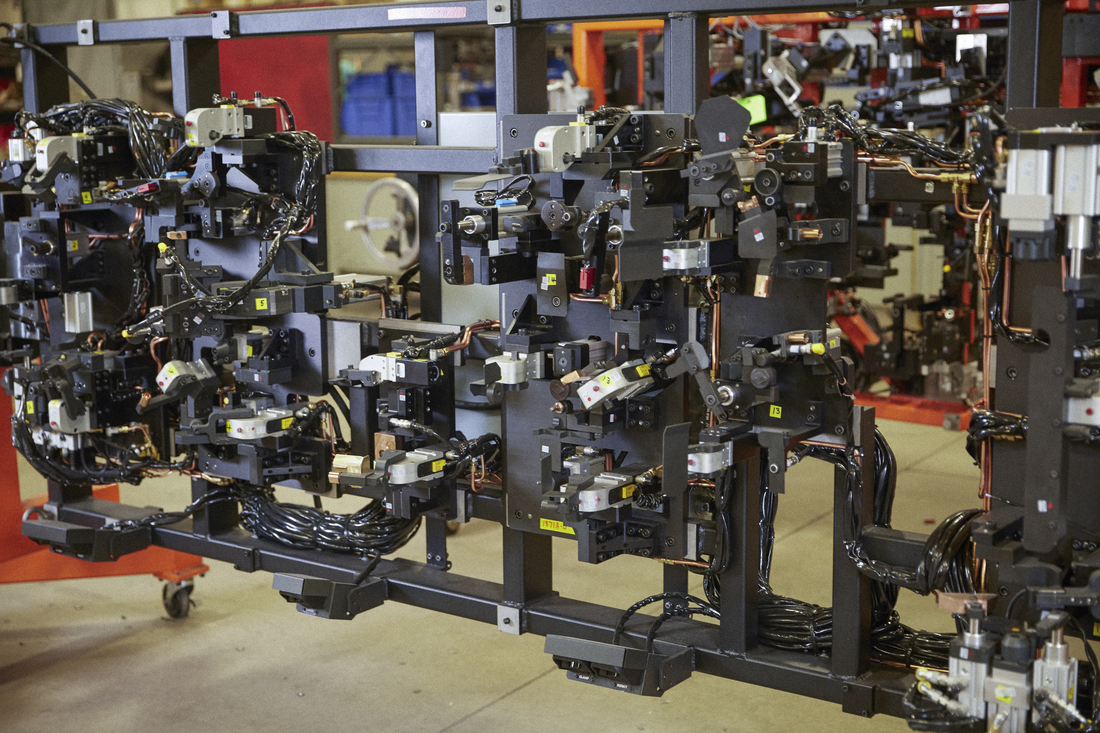

Tooling

Automotive-Style Tooling

Throughout North America, Lincoln Electric Automation is known as a premier supplier of automotive-style tooling and often used as the benchmark by which others are measured. With unsurpassed capabilities, experience and attention to detail, our tooling services are utilized in the manufacture of complex, dimensionally critical assemblies such as seating, bumpers, frames, exhaust, motorcycle frames, ATV frames, and instrument panels.

We are a leading supplier of automotive-style tooling that can meet industry demands by designing, building, and integrating high-volume tooling in-house for enhanced flexibility, repeatability and standardization. We understand automotive manufacturers often face challenges such as model changes, increased tooling costs, and downtime from spatter and defects, so we design high-volume tooling with efficient, cost-effective components that are easily modified for model variance while ensuring high-quality welds and minimal downtime.

Lincoln Electric Automation is your one-stop shop for automotive automation. We can help design and create your automotive tooling and integrate it into a Pro-Pak® robotic welding system that fits your manufacturing needs. Learn more below!

Learn More About Automotive Tooling

Request an Automotive Tooling Quote

Request Automotive Tooling with a Pro-Pak Robotic Welding System

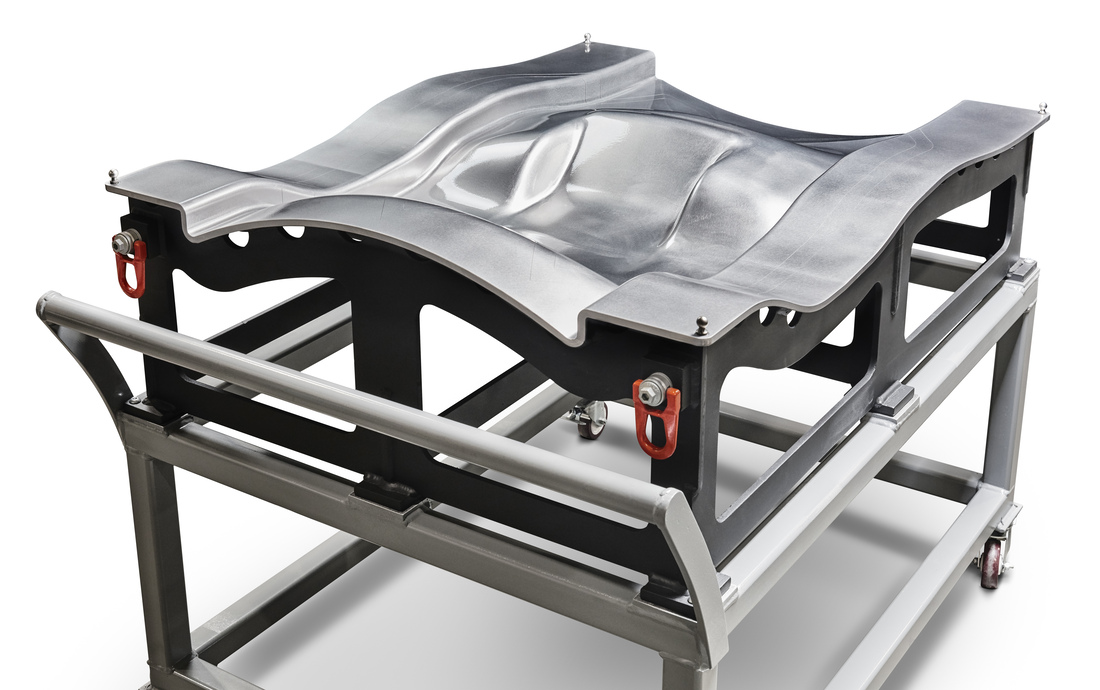

Large Aerospace Composite Tooling Facesheet

Tooling

Aerospace Tooling

With our AS-9100 certification, ITAR registration and reputation for precision, quality and performance in providing jigs, fixtures, gages, dies, custom automation equipment and precision machining, Lincoln Electric consistently achieves tolerances of +/-0.0001 inch, ensuring high quality and success. That precision comes through experience. Experience gained over many projects, many customers, and a wide variety of applications involving:

• Assembly & Bond jigs
• Layup & Mill fixtures
• Detail fixtures
• CMM fixtures
• Prototype fixtures
• Production fixtures
• Precision inspection gages

That experience also rests in our people and equipment. At Lincoln Electric, we achieve precision through state-of-the-art equipment, vibration isolated floors, environmental controls, experienced engineers, tool makers, precision machinists – and an unparalleled commitment to excellence.
We’re able to deliver excellence in tooling by seamlessly integrating our in-house capabilities, including design and engineering, machining, fabrication, 3D printing, and inspection and validation.

Learn More About Aerospace Tooling

Request A Quote for Aerospace Tooling

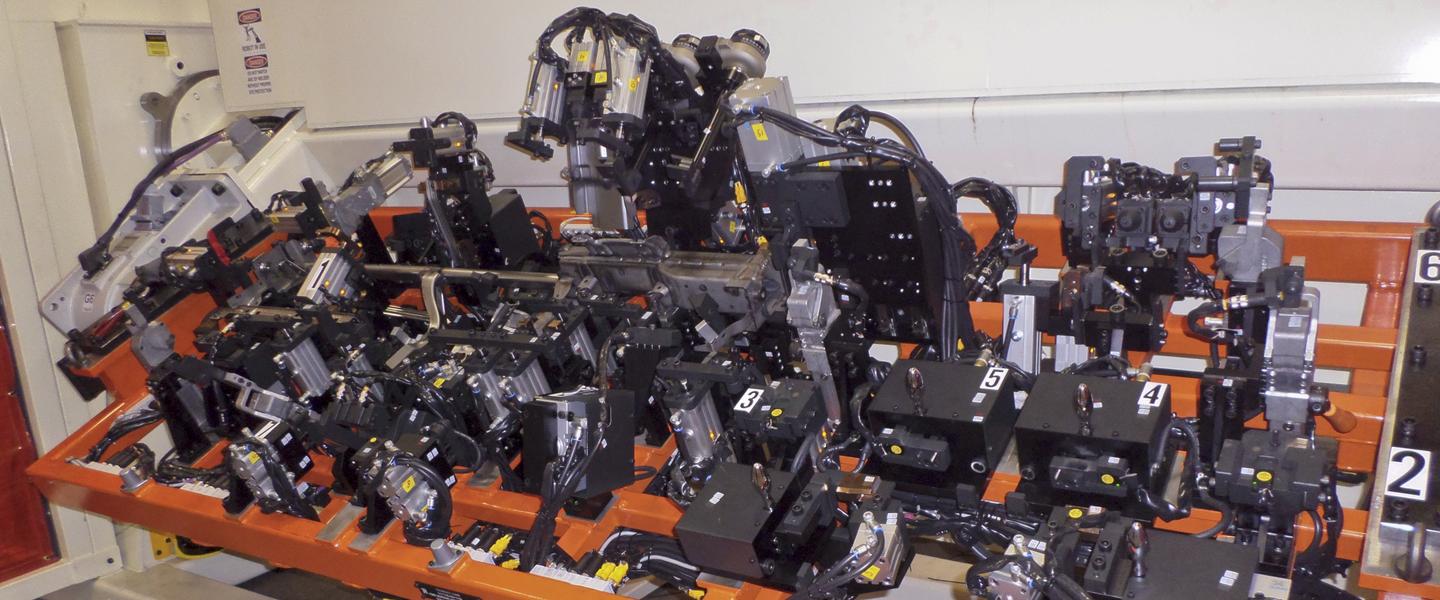

Tooling

Appliance Tooling

We are the leading automation supplier in North America for turnkey automated systems for the appliance and HVAC industry. With over 50 years of developing effective solutions, we deliver positive results by leveraging our breadth of experience in fabrication and assembly to optimize your production. We focus on providing flexible and agile production systems that increase product changeover and new product launch timelines, address mixed production, and deliver superior OEE through modular stations and robotic handling. Lincoln Electric will work with your manufacturing team to tailor solutions that can improve your quality, cycle times and OEE for a wide variety of appliance products. Whether you need a solution for a brand-new product or an improvement to your existing equipment, we can help optimize your manufacturing operations.

Learn More About Appliance Tooling

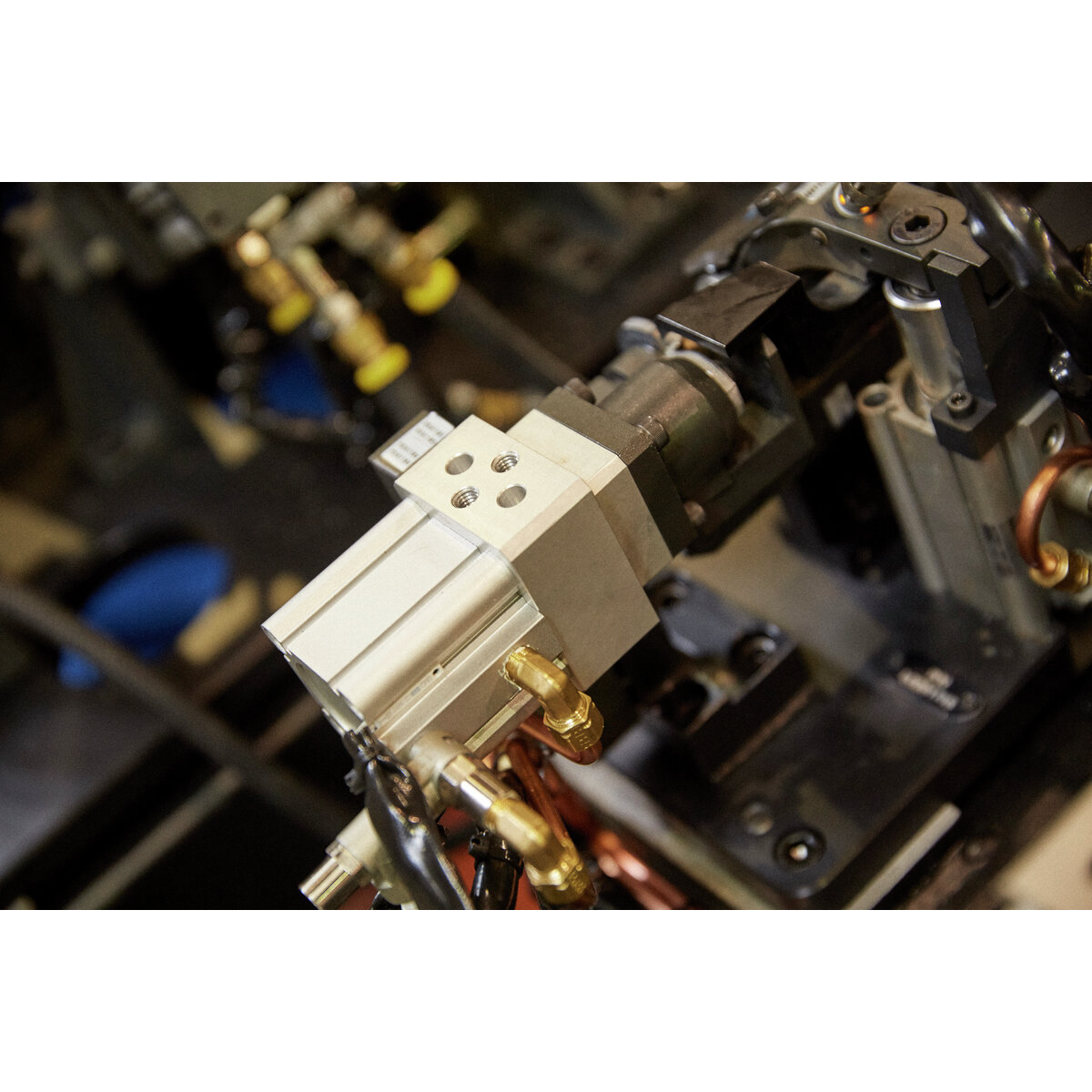

Offset retract and straight pin clamp shown with tooling

Clamping Tooling

Manufacturers depend on reliable, durable and precise clamping tooling that can stand up to harsh welding environments with superior holding capabilities for a range of payloads and designs. We understand your parts are manufactured with tight tolerances on dimensions, so we design and manufacturer clamps that hold your work piece in place, providing proper part alignment and giving you the confidence that your production criteria will be met.

Our clamping and tooling products also ensure that your employees are able to perform their jobs safely, efficiently and accurately.

From concept and design to machining, welding and fabrication, controls and programming, we manufacture our clamping and tooling products in-house, ensuring you receive the highest quality clamping products.

Learn More about clamping capabilities

Request A Clamping Tooling Quote

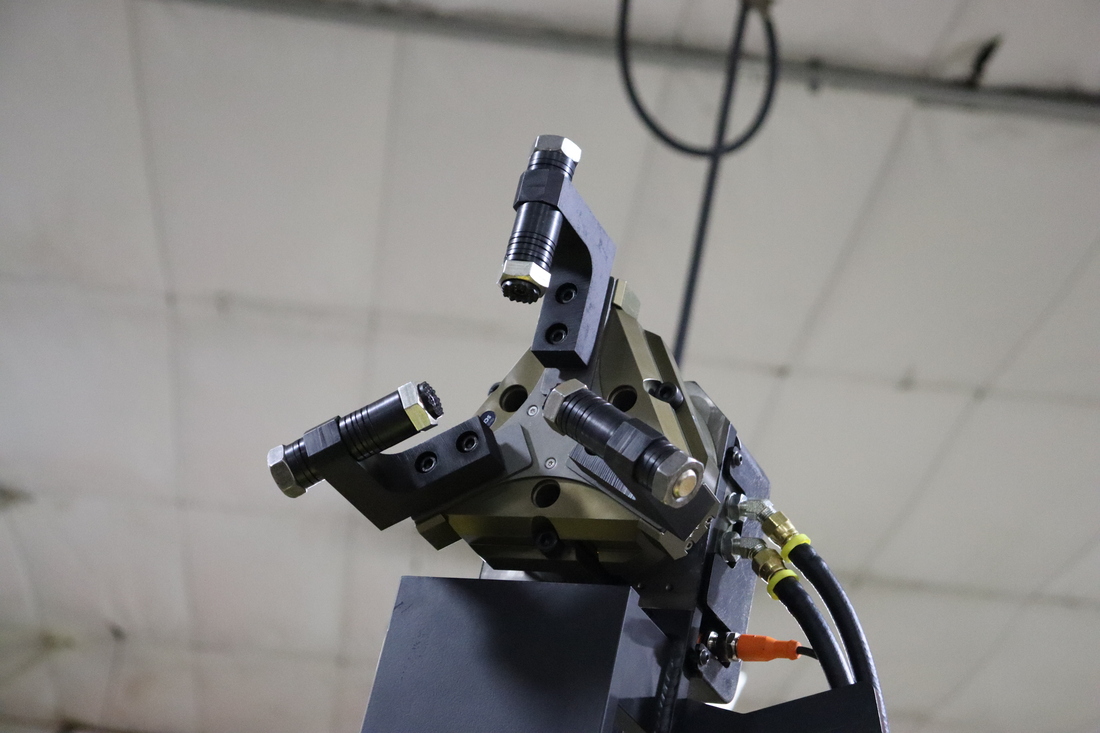

End-of-Arm Tooling

Tooling

End-of-Arm Tooling

With an in-house machine shop and many years of experience designing rugged EOATs for demanding and high-temperature applications, we can help design an EOAT and associated dress-out package for your robot application.

Fori Automation, a Lincoln Electric company, offers a variety of tooling to help facilitate assembly operations. Support tooling includes overhead lift assists, overhead tooling, automatic assembly tooling and automated torque tubes.

Learn More About Gripper End-Of-Arm Tooling

Learn More About Assembly End-of-Arm Tooling

Tooling

Integrated Tooling

Manufacturers face many challenges today, whether it’s minimizing downtime, meeting tight deadlines, or finding skilled workers despite the talent shortage. Sourcing robotic systems, tooling, integration and weld development can add to these challenges, resulting in long lead times and unplanned cost overages.

As a vertically integrated supplier, Lincoln Electric can drastically minimize these risks. From design, manufacturing, assembly and integration in-house, our tooling experts can provide the right solution for your most challenging applications.

Learn More about Integrated Tooling

Explore Robotic Welding Systems

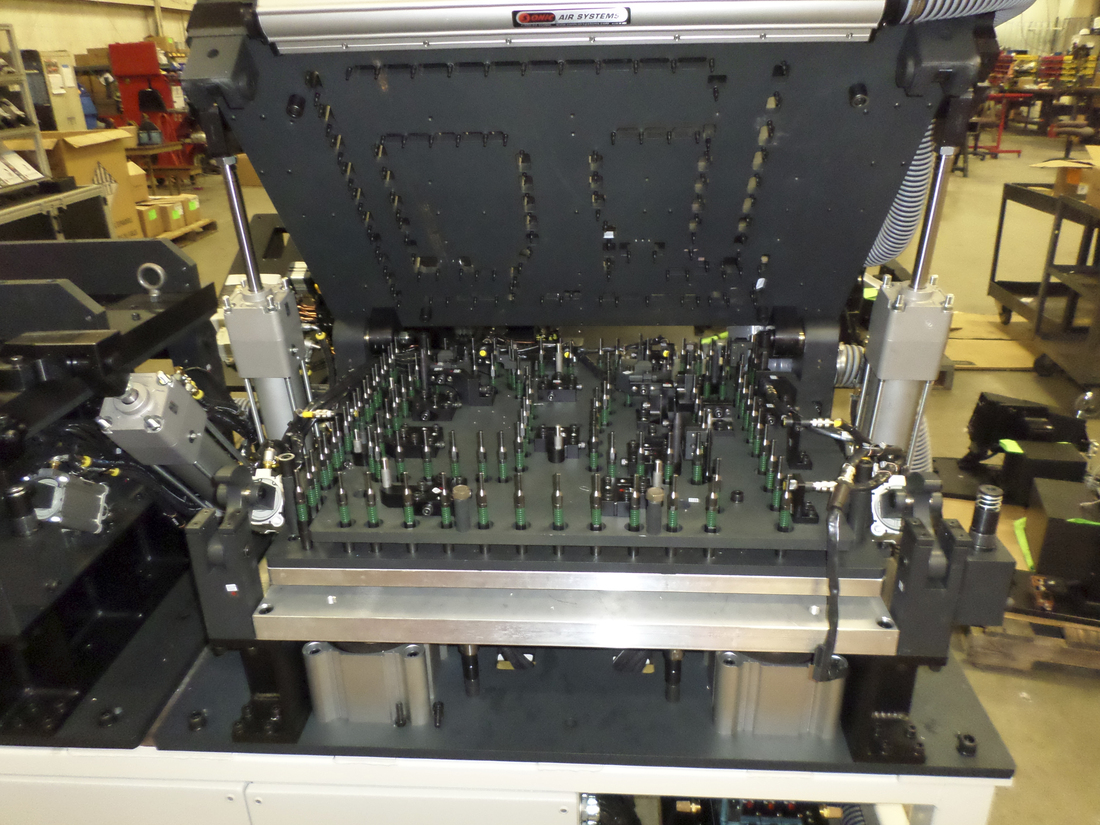

Laser Tooling/fixturing

Tooling

Laser Process Tooling

Manufacturers are expected to provide their customers with products built to strict specifications and exceedingly tight tolerances. Lincoln Electric’s laser cutting and welding tooling optimize quality and can minimize capital equipment costs. Our expert-designed fixtures position the parts for laser cutting or welding, improving quality, reliability and accuracy with less labor required. Our laser-process tooling allows manufacturers to weld very thin material and reduces the use of consumables. The result produces welds that are near seamless, minimizing the time and additional costs to grind and finish the part.

Request A Laser Process Tooling Quote

Tooling

Pneumatic Tooling

We help save you downtime and increase your production by designing flexible tooling with pneumatic clamps, quick disconnects, plug-and-play communications, and spatter-resistant protection. With vast experience in some of the world’s most demanding industries, we are equipped to and experienced in confidently and consistently achieving tolerances as tight as ±0.0001 inch. That precision comes through experience–experience gained through thousands of projects, with hundreds of diverse customers, for a wide variety of industries and applications.

Learn More About Pneumatic Tooling

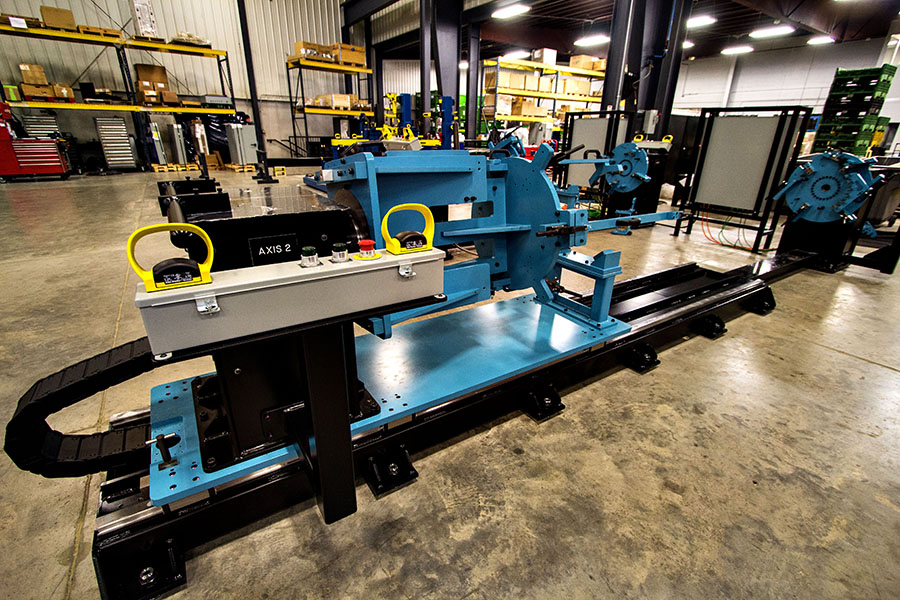

LEA-Bettendorf Tooling

Tooling

Tooling and Positioning

Our tooling is designed alongside robotic systems or positioner products. ANNEX™ robotic positioners can lift, rotate, or translate a part with speed and precision. By leveraging our in-house capabilities, we are able to deliver a superior solution faster than our competition.

Learn More About Tooling and Positioning

Learn More About ANNEX Robotic Positioners
