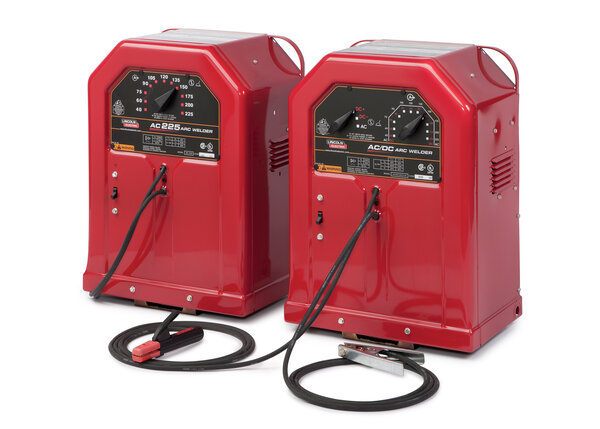

AC225™ Stick Welder
K1170
AC225 stick welder is compact and produces a smooth AC arc for welding mild steel, low alloy, and stainless steel.
MSRP
USD $758.00/EA
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
The Time-Tested Original
The AC225 compact stick welder produces an extremely smooth AC arc for welding a wide variety of materials including carbon, low alloy, and stainless steels as well as cast iron.
Features
- Easy to install - Comes with attached 6 ft. (1.8m) input power cable and NEMA 6-50P plug.
- Easy to operate - Full range 40-225 amp selector switch quickly sets the welding current and ensures a uniform arc each and every time You weld.
- Smooth arc - Makes it easy to weld with different electrodes, including mild steel, low hydrogen, stainless steel and hardfacing electrodes.
- 225 amp AC output - Is enough for 3/16"" (4.8mm) diameter general purpose mild steel electrodes and 5/32"" (4.0mm) sizes of other electrodes.
- NEMA rated, UL listed and ULCSA approved.
Disclaimers
Service Information
What's Included
- (1) Insulated Electrode Holder and Cable
- (1) Heavy Duty Work Clamp and Cable
- (1) Input Cable with Attached Plug
Documentation
You May Also Need
Specifications
Machine Inputs & Outputs
| Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) | 230/1/60 |
| Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) | 225A/25V/20% |
Product Weights & Dimensions
| Dimensions (H x W x D) | 24 in x 17.25 in x 12 in (610 mm x 438 mm x 305 mm) |
| Net Weight | 96 lbs (43.546 kg) |
Machines
| Machines Processes | Stick (SMAW) |
| Max Rating | 225 |
Stick Welders
| Safety Listing CSA (Y/N) | Yes |
| Safety Listing UL (Y/N) | Yes |
| Work Clamp Include (Y/N) | Yes |
Basic Specification
| Input Voltage | 230 |
| Input Current | 50A |
| Input Hertz | 60 |
| Input Power | 230/1/60 |
| Input Phase | 1 |
| Output Range | 40-225A |
| Polarity | AC |
| Rated Output | 225A/25V/20% |
Application
| Typical Application | Maintenance & Repair Repair Welding |
Warranty
| Warranty | 3 Years |
