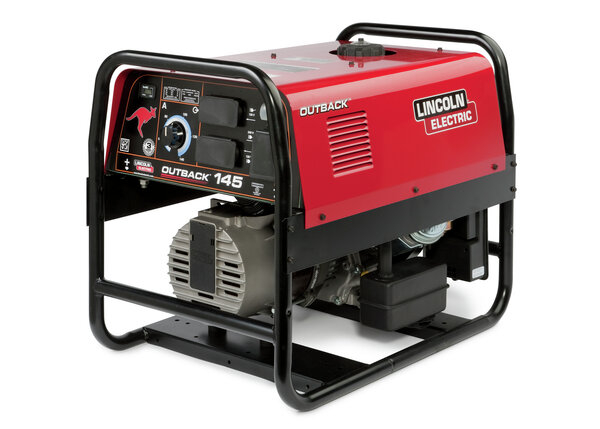

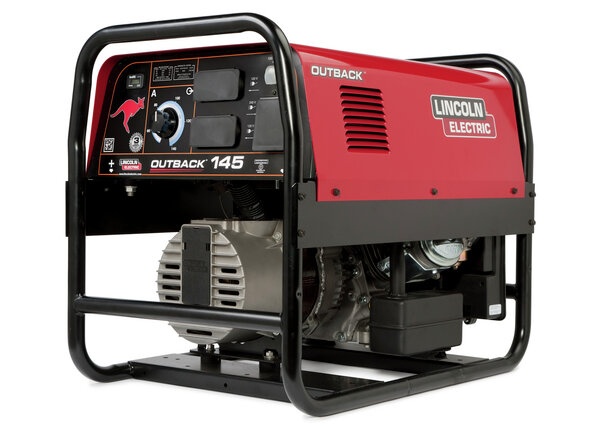

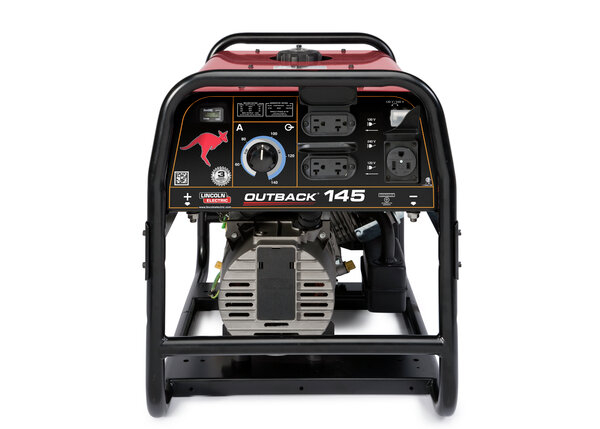

Outback® 145 Engine Driven Welder (Kohler®)
K2707-2
Portable welder/generator with DC stick welding and AC generator output, great for service trucks, fence contractors, maintenance crews, farmers, and ranchers.
MSRP
USD $5,241.00/EA
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
Built For The Outdoors!™
It’s great for service trucks, fence contractors, maintenance crews, farmers, ranchers and anyone who needs portable DC stick welding and AC generator power!
- Low-Lift™ Grab Bars
- More leverage for lifting unit on and off truck beds.
- Extra protection against product damage.
- Best in class feature!
- 1-1/4 in. (32 mm) Diameter Rugged Tube Frame
- Great for all-around sturdy protection.
- Largest diameter tube frame in its class!
- Best in class feature!
- 6.8 Gallon (25.7 Liter) Fuel Tank
- For extended run times, less frequent re-fueling.
- Large fuel fill opening for easy re-fueling too.
- Best in class feature!
- DC Welding with up to 1/8 in. (3.2 mm) Stick Electrode
- Up to 145 amps of DC output for many applications.
- 4,750 Watts Peak (4,250 Watts Continuous) AC Generator Power
- Many uses! Grinder, work lights, pump, motor starting, or emergency power.
- Plug in a Lincoln POWER MIG® 140C or POWER MIG® 180C for wire welding!
Features
- Low-Lift Grab Bars (Patent Pending)
- 1-1/4 in. (32 mm) Diameter Rugged Tube Frame
- 6.8 Gallon (25.7 Liter) Fuel Tank
- DC Welding with up to 1/8 in. (3.2 mm) Stick Electrode
- 4,750 Watts Peak (4,250 Watts Continuous) AC Generator Power
Disclaimers
Service Information
What's Included
- (1) Outback 145 Engine Driven Welder
Documentation
You May Also Need
Specifications
Product Weights & Dimensions
| Dimensions (H x W x D) | 25.5 in x 21.2 in x 31.5 in (647 mm x 537 mm x 800 mm) |
| Net Weight | 234 lbs (106 kg) |
Machines
| Machines Processes | Stick (SMAW) |
| Max Rating | 125A / 25V / 30% @ 104°F (40°C) |
| Output Range by Mode | CC-Stick: 50 – 145 Amps |
Engine Driven Welders
| Single Phase Auxiliary Output | 4, 250 Watts Continuous, 120/240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 6-50R |
| Engine Brand & Model | Kohler CH395 |
| Engine Description | 1 Cylinder Air Cooled Gasoline Engine |
| Engine Horsepower | 8.9 HP |
| High Idle Operating Speed @ Rated Output | 3600 |
| Fuel Tank Size (US gal.) | 6.8 |
| Fuel Tank Size (L) | 25.7 |
| Oil Capacity (qts.) | 1.2 |
| Oil Capacity (L) | 1.1 |
Application
| Typical Application | General Fabrication Maintenance & Repair Repair Welding |
Warranty
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
