Bulldog 5500 Portable Engine Driven Welder
Buldog 5500
Bulldog 5500 Portable Engine Driven Welder
Bulldog 5500 Portable Engine Driven Welder
Bulldog 5500 Portable Engine Driven Welder
Bulldog 5500 Portable Engine Driven Welder

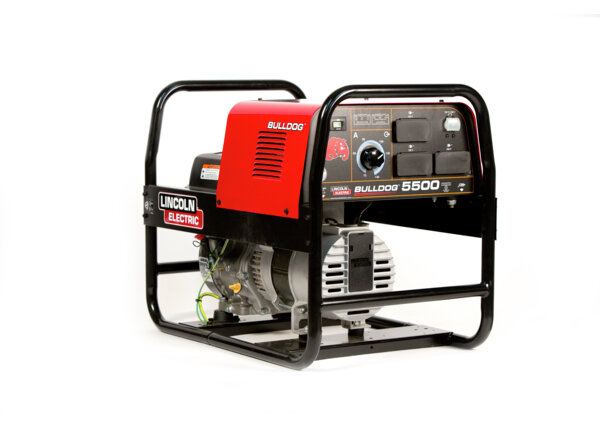

Bulldog® 5500 Engine Driven Welder (Kohler®)

K2708-2

Portable welder/generator with AC welding and AC generator output, great for hobbyists and welders.

Output

Output Output

Input

Input

MSRP

USD $3,821.00/EA

DETAILS

Portable AC Welder/AC Generator

Great for anyone who needs portable AC stick welding and AC generator power!

  • Low-Lift™ Grab Bars
      More leverage for lifting unit on and off truck beds
    • Extra protection against product damage.
    • Best in class feature!
  • 1-1/4 in. (32 mm) Diameter Rugged Tube Frame
    • Great for all-around sturdy protection.
    • Largest diameter tube frame in its class!
    • Best in class feature!
  • AC Welding with up to 1/8 in. (3.2 mm) Stick Electrode
    • Up to 140 amps of AC output for many applications.
  • 5,500 Watts Surge (4,000 Watts Continuous) AC Generator Power
    • Many uses! Grinder, work lights, pump, motor starting, or emergency power.
    • Plug in a Lincoln® POWER MIG® 140C for wire welding.



Features

  • Low-Lift™ Grab Bars (Patent Pending)
  • 1-1/4 in. (32 mm) Diameter Rugged Tube Frame
  • AC Welding with up to 1/8 in. (3.2 mm) Stick Electrode
  • 5,500 Watts Surge (4,000 Watts Continuous) AC Generator Power

Disclaimers

Warning -

Cancer and Reproductive Harm -

www.P65Warnings.ca.gov

Service Information

What's Included

  • (1) Bulldog 5550 Engine Drive Welder

Documentation

You May Also Need

Ground Fault Circuit Interrupter (GFCI) Receptacle Kit

GFCI Receptacle Kit

K1690-1
Outback Cover

Tube Frame CanVAS™ Cover

K2804-1
Lift Bail Kit

Lift Bail Kit

K2819-1
Outback 185 - Undercarriage Handles

Outback® Tube Frame Undercarriage

K2722-1
View All

Specifications

Product Weights & Dimensions

Dimensions (H x W x D) 25.6 in x 21.8 in x 31.5 in (651 mm x 553 mm x 800 mm)
Net Weight 198 lbs (89.813 kg)

Machines

Machines Processes Stick (SMAW)
Max Rating 125A / 20V / 30% @ 104°F (40°C)
Output Range by Mode CC-Stick: 70 – 140 Amps

Engine Driven Welders

Single Phase Auxiliary Output 4,000 Watts Continuous, 120/240V
Auxiliary Output Frequency 60 Hz
Receptacle Types NEMA 5-20R
Engine Brand & Model Kohler CH395
Engine Description 1 Cylinder Air Cooled Gasoline Engine
Engine Horsepower 8.9 HP
High Idle Operating Speed @ Rated Output 3600
Fuel Tank Size (US gal.) 1.9
Fuel Tank Size (L) 7.2
Oil Capacity (qts.) 1.2
Oil Capacity (L) 1.1

Application

Typical Application General Fabrication
Maintenance & Repair
Repair Welding

Warranty

Warranty 3 Years Parts and Labor - Engine warranted separately by engine manufacturer
