DETAILS

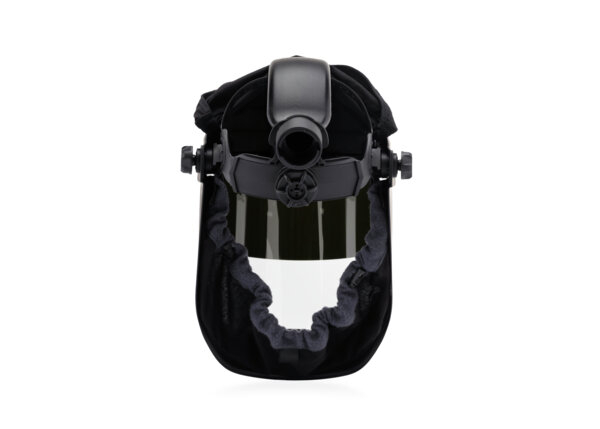

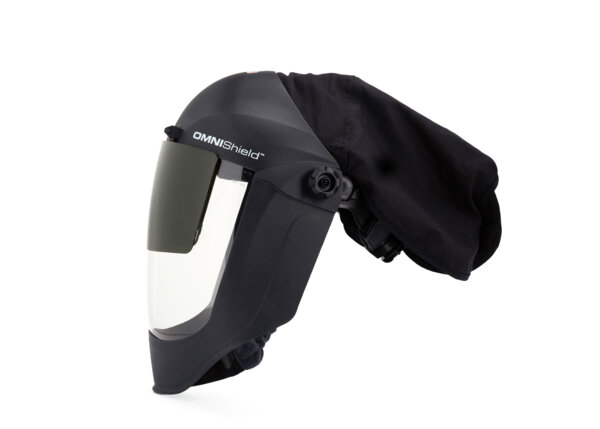

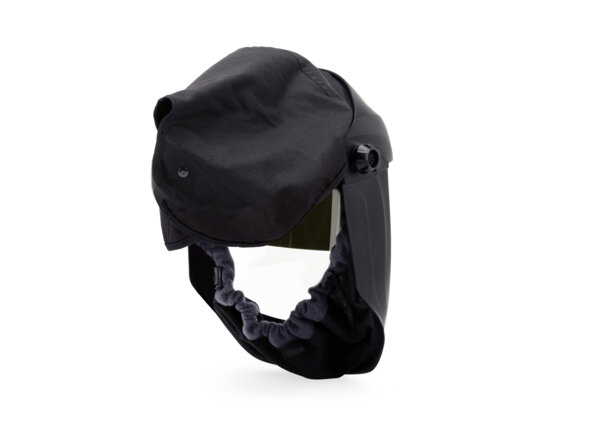

The OMNIShield® XCF PAPR is an innovative PAPR system that combines the technology of a respiratory blower with the comfort of a face shield, providing you with one single device that eliminates the need for multiple products.
- Proven Impact Protection - High density polycarbonate lens provides protection from high velocity impacts; Certified to meet ANSI Z87.1, CSA Z94.3 compliance standards
- Designed for Comfort - Lightweight, high strength shell with adjustable headgear for proper weight distribution and utmost comfort
- Integrated Protection - Designed to be the superior all-in-one respiratory, head, eye, and face protection
- Intelligent Blower with Extended Battery - Rechargeable lithium ion battery provides up to 16 hours of charge to the smart blower system featuring an LED display, audible & vibratory alerts and automatic speed adjustments
Features
- Anti-fog lens coating enhances visibility, improves productivity and eliminates fogging frustrations
- Premium impact resistant polycarbonate lens is 90% thicker than a traditional face shield (0.077"vs 0.040") for enhanced protection
- Simple, smart respiratory system with LED display that indicates battery life, flow rate, and filter life
- Adjustable leather belt assembly secures Viking air purifying blower to operators waist

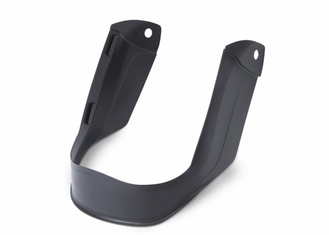

- Integrated chin and neck guard for extended protection
Disclaimers
Service Information

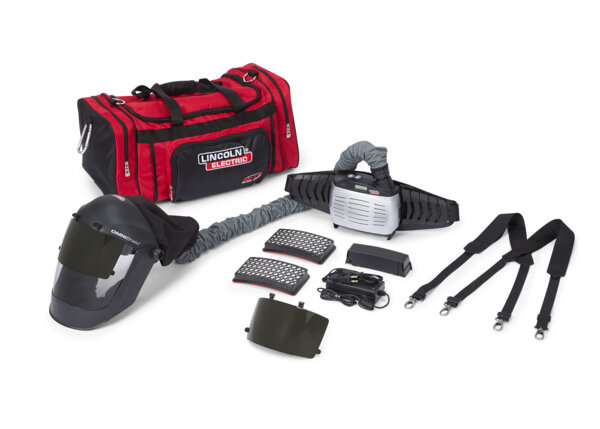

What's Included
- (1) OMNIShield® XCF Face Shield
- (1) VIKING™ PAPR Blower Unit
- (1) KP5123-1 Padded Belt 29-52 in
- (2) KP5124-1 Shoulder Straps
- (1) PAPR Back Pack FR Hose
- (2) KP3424-2 HEPA Filters
- (1) KP3935-1 Pre-Filter
- (1) KP3936-1 Spark Screen
- (1) KP3938-1 Extended Capacity Lithium Ion Battery
- (1) KP3932-1 120V Battery Charger
- (1) Industrial Duffle Bag
Documentation
You May Also Need
Specifications
Eye and Face Protection
| Eye and Face Protection Product Types | Faceshields |
| Eye and Face Protection Lens Coatings | Anti-Fog |
Respiratory Protection
| Respiratory Protection Product Types | PAPR |
| Respiratory Protection Compliance | NIOSH 42 CFR Part 84 |
| Respiratory Protection Product Series | OMNIShield® XCF Face Shield |
| Respiratory Protection Filter Type | HEPA |
| Respiratory Protection Assigned Protection Factor | 25 APF |
| Respiratory Protection Weight | 1.5 lbs. |
| Respiratory Protection Air Flow | Low Speed: 180+ Ipm (6+ cfm) High Speed: 210+ Ipm (7.4+ cfm) |
| Respiratory Protection Battery Charge Time | 3 Hours |
| Respiratory Protection Battery Charges | 500 |
| Respiratory Protection Battery Life | Up to 16 hours |
| Respiratory Protection Alarms | Audible & Vibratory alarms for low battery and filter life |
Replacement Parts
| Cover Lenses | KP4974-1 Replacement Lens - Shade 5 Flip-Up KP3757-1 Replacement Lens - Anti-Fog/Anti-Scratch KP3756-1 Replacement Lens - Anti-Fog KP3755-1 Replacement Lens - Uncoated |

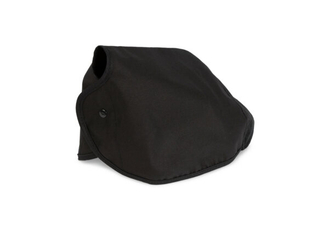

| Sweatband & Headgear | KP5329-1 OMNIShield XCF Head Covering KP4636-1 Back Pad Headpiece KP4638-1 Sweatband Headpiece KP5330-1 Overhead Covering |
| Auto-Darkening Filter & Parts | KP3939-1 Belt Extension KP5123-1 Belt Assembly KP5345-1 Belt Hose Cover KP5122-1 Belt Hose Assembly KP3944-1 Blower Assembly KP3424-2 & KP3424-6 HE Filter KP3935-1 Pre-Filter KP3936-1 Spark Screen KP3383-1 Multi-Operator Battery Charger KP3932-1 Battery Charger KP3938-1 Extended Battery Pack KP3937-1 Battery Pack |
| Replacement Shells | KP5328-1 OMNIShield Flip-Up Face Shield Headpiece KP5354-1 Replacement Chin Guard KP5352-1 |
Warranty
| Warranty | 3 Years |
