DETAILS
PROFESSIONAL-GRADE PERFORMANCE

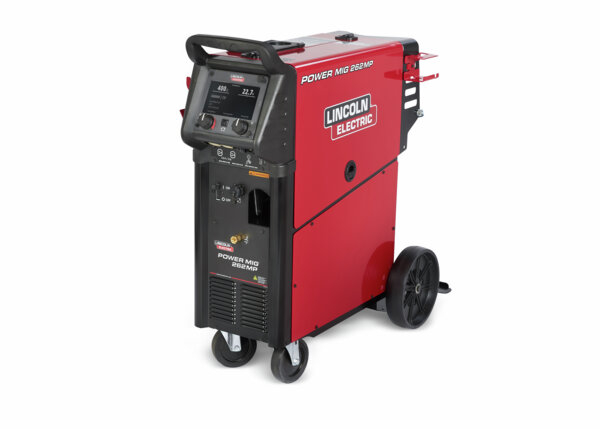

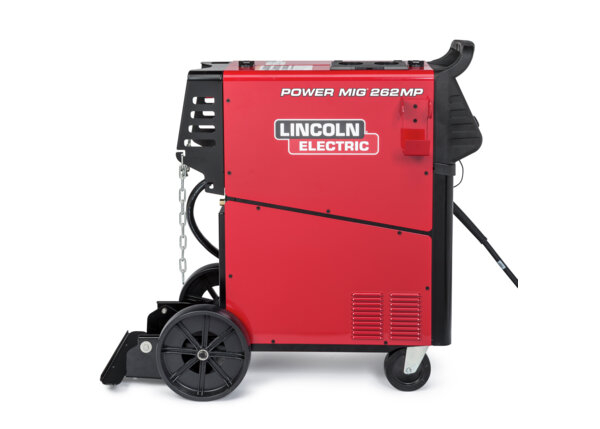

Experience the ultimate in professional-grade performance with the POWER MIG® 262MP. With a max output of 300 Amps and multi-process functionality including MIG, Pulsed MIG, Stick, Flux-Cored, and TIG, the 262MP delivers all the performance and versatility you expect from the POWER MIG family. Equipped with cutting-edge technology like Ready.Set.Weld®, ArcFX®, and Weld Set Memory, the POWER MIG 262MP puts precise machine control at your fingertips. Navigate effortlessly through its features with the intuitive 7-inch LCD display, ensuring seamless operation and unparalleled operator control. From autobody projects to all-day fabrication, trust the POWER MIG262MP to deliver the unmatched performance and reliability you need.
Features

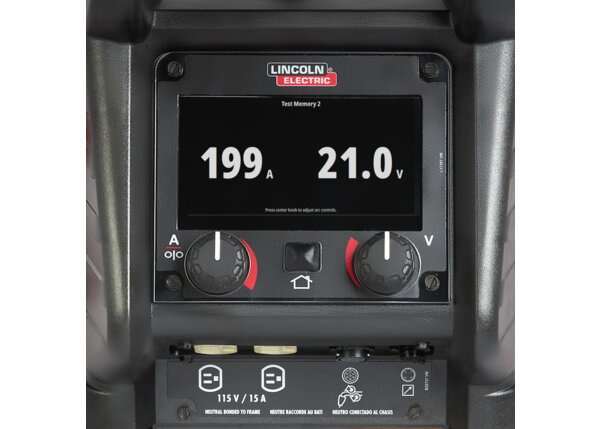

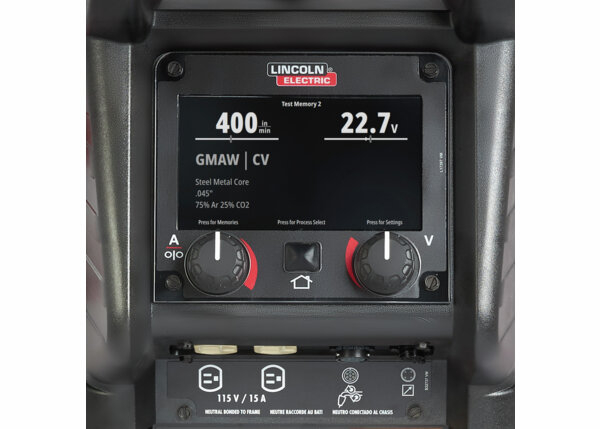

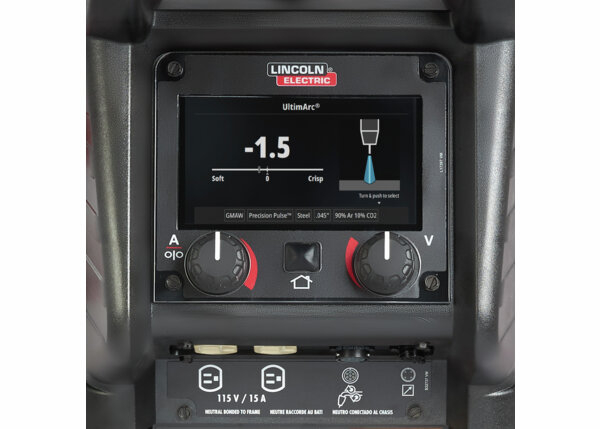

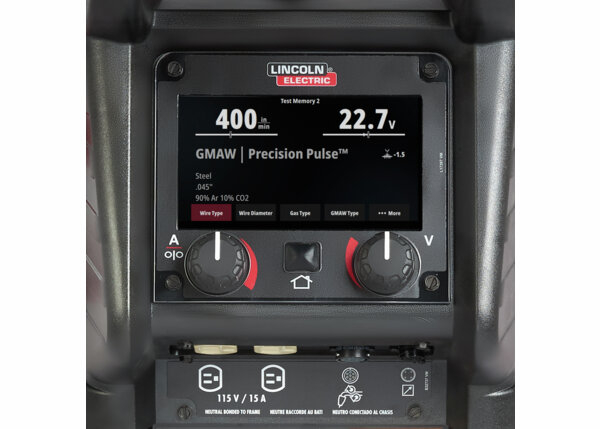

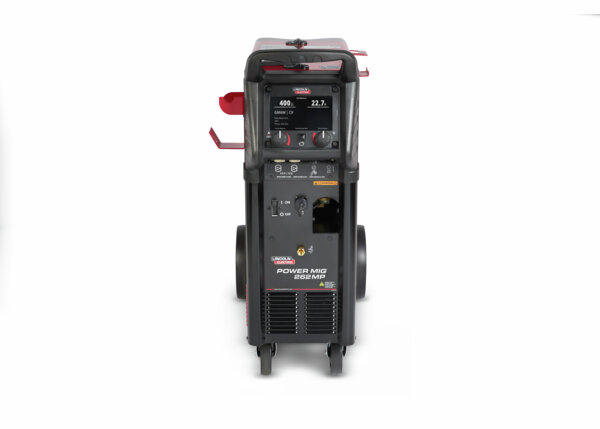

- 7-Inch Color Display - Enhances communication between operator and machine.
- Aluminum Pulse Process - Welds 4XXX and 5XXX series aluminum for superior quality welding.
- Multi-Process Capable - Welds MIG, flux-cored, stick, TIG, and pulsed MIG.
- Stick Settings for 6010 + 6011- Superior performance with cellulosic electrodes.
- 300 Amp Max Output- Perfect for autobody, light fabrication, education, and more.
- Memory Recall- Easily save and access memories with the enhanced UI.
- Synergic Control - Set weld procedures with one control.

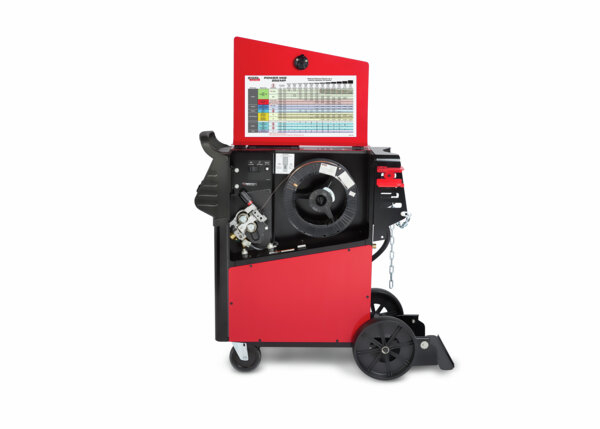

- Rugged MAXTRAC® Industrial Wire Drive - Allows for constant wire feed speed and consistent welds.
- 3 Ways to Feed Aluminum - Electronics built in for all three methods using a Push Gun, Spool Gun or a Push-Pull Gun.
Disclaimers
Service Information
What's Included

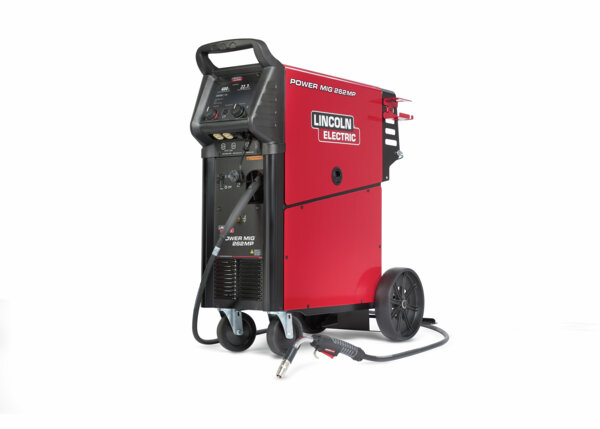

- (1) POWER MIG 262MP Welder
- (1) K4530-2 Magnum PRO 250L Welding Gun
- (1) K586-1 Adjustable Gas Regulator and Hose
- (1) KP1696-1 Drive Roll Kit 0.035/0.045 in
- (1) Quick Storage Accessories
- (1) 10 ft Work Cable with Clamp
- (1) 10 ft Power Cable with Plug
Documentation
Specifications
Product Weights & Dimensions
Dimensions (H x W x D) | 37.5 in x 18 in x 37.5 in (947.42 mm x 457.2 mm x 952.5 mm) |
Net Weight | 250 lbs (113.4 kg) |
Machines
Machines Processes | Stick (SMAW) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
Max Rating | 300 |
Open Circuit Voltage | 90V |
Amphenol Pins (type of connector) | 12 |
Basic Specification
Input Voltage | 208/230/460/575 |
Input Current | 49.1/44/22.1/17.6 |
Input Hertz | 60 |
Input Power | 208/230/460/575/1/60 |
Input Phase | 1 |
Mode Icon | CC/CV |
Output Range | 5-300A |
Polarity | DC |
Rated Output | 230A/26.5V/60% |
Application
Typical Application | Automotive General Fabrication Heavy Equipment Maintenance & Repair |
Warranty
Warranty | 3 Years |
