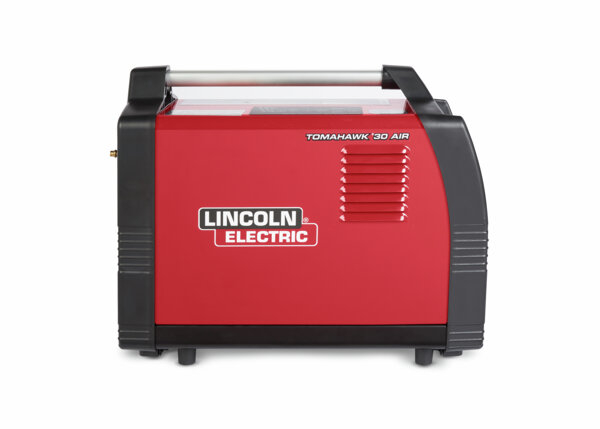

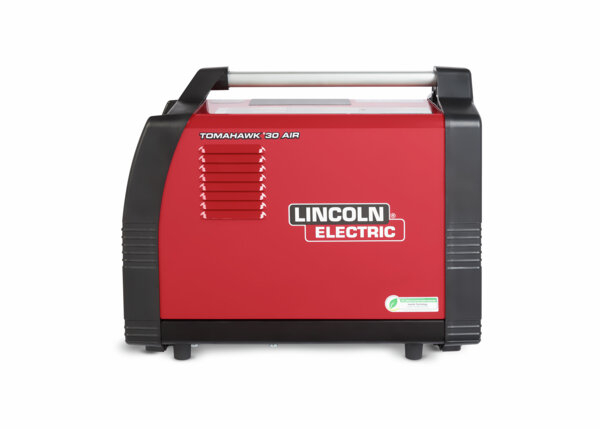

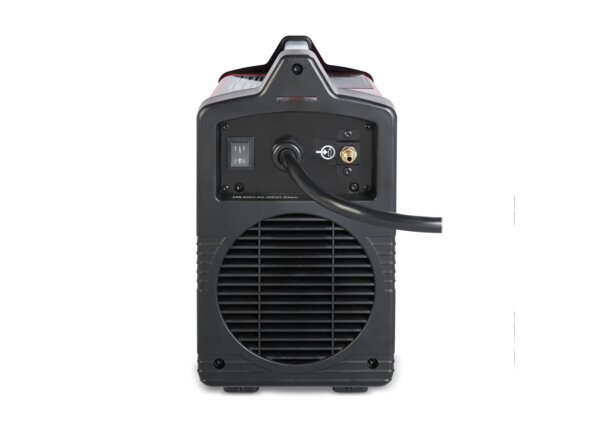

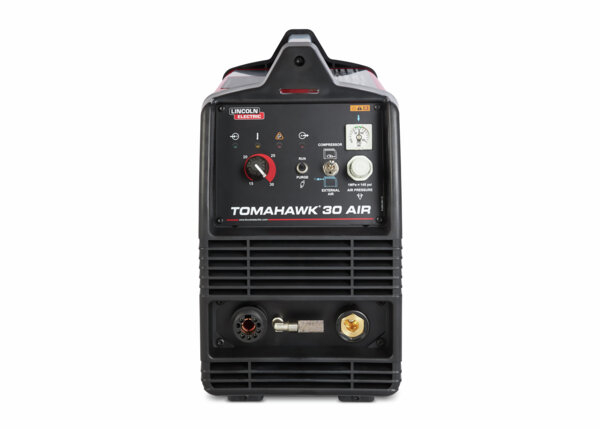

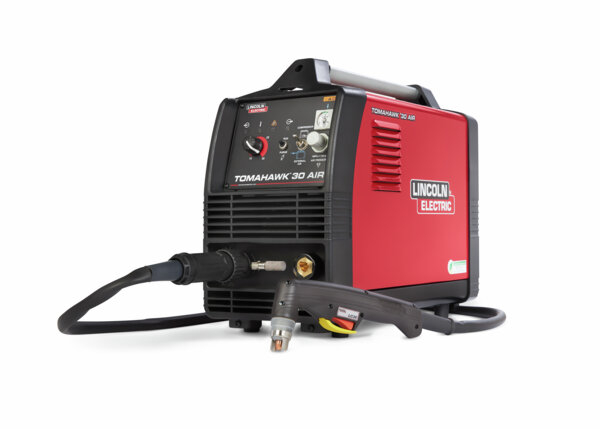

Tomahawk® 30 AIR Plasma Cutter with 10 ft (3.0 m) Hand Torch, w/Built-In Compressor

K5457-1

The Tomahawk 30 AIR plasma cutter cuts mild and stainless steel precisely and can be used with either external or internal compressor.

Output

Output

Input

Input Input

Rebate

$400 End User Rebate (US Only) - See Details Below - Offers valid for a limited time only, while supplies last

MSRP

USD $1,999.00/EA

DETAILS

LIMITED-TIME OFFER (US Only)!
Buy a Tomahawk® 30 Air plasma cutting system and receive a $400 VISA gift card rebate.
STACK & SAVE - Add Lincoln Electric Accessories & Filler Metals for more savings.

SUBMITTING IS AS EASY AS…

  • Go To: lincolnrebates.com
  • Complete Account Registration
  • Click ‘SUBMIT A CLAIM’
  • Select You Rebate and Enter Machine Serial Number
  • (For Additional Stack & Save Rebates) Circle the Accessories and Filler Metals on Your Invoice or Receipt with Price Paid.
  • Click ‘COMPLETE MY CLAIM’

View All Buy Red Save Green Rebates

PLASMA CUTTING WITH BUILT-IN AIR

The Tomahawk® 30 Air plasma cutting system arrives ready to go for fast and precise cutting. With its built-in air compressor, this machine is perfect for anyone who needs a reliable, portable cutting tool. With the Tomahawk 30 Air, forget the grinder – simply pick up the torch and cut in seconds. Plus, it also has external air capabilities, so you can use it with an external compressor if you need to. So whether you’re working in your garage or out in the field, the Tomahawk 30 Air is the perfect tool for the job.

Features

  • Ultimate Portability – Internal air compressor enables operation in environments where external compressed air is not available.
  • Continuous Output Control – Focus the arc for different material thickness.
  • Touch Start System – Reliable plasma arc initiation without high frequency.
  • Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.

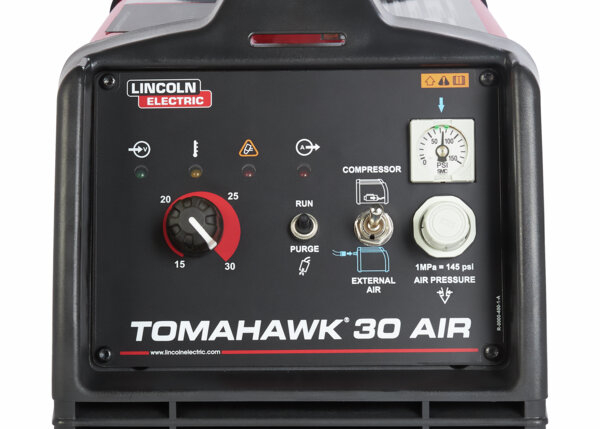

  • Front Panel Purge Control – Makes it easy to set the airflow rate without initiating the plasma arc.
  • Cool Operation, Long Consumable Life - Enhanced swirling airflow keeps the electrode and tip cool and increases the life of consumables.
  • Added Safety – Our Parts-in-Place system detects correct installation of consumables and torch.
  • Engine Drive Compatible – Select a Lincoln Electric recommended engine driven welder / generator to power your Tomahawk in remote locations.

Disclaimers

Warning -

Cancer and Reproductive Harm -

www.P65Warnings.ca.gov

What's Included

  • (1) Tomahawk 30 AIR Plasma Cutter
  • (1) Internal Air Compressor (External Air Connection also Standard)
  • (1) K5537-1 LC30 Hand Torch and 10 ft (3 m) Cable
  • (3) KP2842-1 Electrode
  • (3) KP2842-6 Nozzle 30A
  • (2) KP2842-4 Swirl Ring
  • (1) KP2842-3 Retaining Cap (Internal Air-2 Holes)
  • (1) KP2842-5 Drag Spacer
  • (1) KP2842-7 Retaining Cap (Internal Air- 6 Holes)
  • (1) Air Regulator and Pressure Gauge
  • (1) Internal Water Separator
  • (1) Work Clamp and Cable
  • (1) Shoulder Strap
  • (1) Input Power Cord

You May Also Need

Specifications

Machine Inputs & Outputs

Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) 230/1/60
Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) 25A/90V/100%
Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) 30A/92V/60%
Phase 1: Input Current at Max Rated Ouput #1 (Current) 16A

Product Weights & Dimensions

Dimensions (H x W x D) 15.2 in x 8.5 in x 18.9 in (385 mm x 215 mm x 480 mm)
Net Weight 40 lbs (19 kg)

Machines

Machines Processes Plasma Cutting
Max Rating 30A

Plasma Machines

Plasma Machines Process Cutting
Torch Included Yes
Gas Supply Air or Nitrogen
Gas Pressure Required 80 - 110 psi (6 -7.5 Bar)
Recommended Cutting Capacity (Mild Steel) (In/ft) 5/16 in. @22 ipm
Recommended Cutting Capacity (Mild Steel) (mm/M) 7.9 mm. @ .56 m/min
Maximum Cutting Thickness (Mild Steel) (ln/Ft) 3/8 in. @ 14 ipm
Maximum Cutting Thickness (Mild Steel) (mm/M) 9.5 mm. @ .36 m/min
Maximum Severance (Mild Steel) (In/Ft) 1/2 in. @ 5 ipm
Maximum Severance (Mild Steel) (mm/M) 12.7 mm. @ .13 m/min

Basic Specification

Output Range 15-30A

Application

Typical Application Construction
Automotive
Brewery
Construction & Field Erection
General Fabrication
Maintenance & Repair
Marine Fabrication & Repair

Warranty

Warranty 3 Year on Machine, 1 Year on Torch
