Idealarc® DC-1000 Subarc Welder
K1386-3
Idealarc DC-1000 welder for submerged arc applications offers multi-process flexibility for semiautomatic and automatic welding.
Model
Select Model
-
DC-1000 Subarc Welder
Idealarc DC-1000 welder for submerged arc applications offers multi-process flexibility for semiautomatic and automatic welding.
K1386-3
-
DC-1000 Subarc Welder
Idealarc DC-1000 welder for submerged arc applications offers multi-process flexibility for semiautomatic and automatic welding.
K1386-4
-
DC-1000 Multi-Process Welder
Idealarc DC-1000 multi-process welder is for MIG, FCAW and Submerged Arc welding, and Gouging.
K1387-3
-
DC-1000 Multi-Process Welder (Not Available in US)
Idealarc DC-1000 multi-process welder is for MIG, FluxCored, submerged arc welding, and Gouging. 415V input.
K1387-6
-

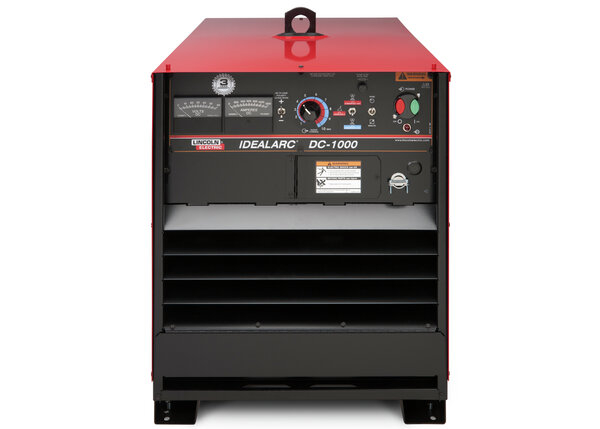

Idealarc® DC-1000
Idealarc DC-1000 multi-process welder is for MIG, Flux cored, submerged arc welding, and Carbon Arc Gouging.
K1387-14
MSRP
USD $23,196.00/EA
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
Industrial DC Multi-Process Welder
The DC-1000 offers 1300 amps of smooth DC output, combining pure welding power with multi-process flexibility for semiautomatic and automatic welding.
- 500 amp output connections - provide enhanced arc characteristics for low amperage submerged arc and MIG welding procedures.
- Single range control - for precise output control and easy operation.
- Terminal strip and output studs - for remote connections and cable.
- Low profile case - allows installation under a workbench and for stacking up to 2 machines to conserve floor space.
- Removable side panels - for easy access to internal parts.
- Internal components - including windings, rectifiers and circuit boards, are coated to protect against the effects of moisture and corrosion.
- Seven-year warranty - on power rectifier.
Features
- The Idealarc DC-1000 welder for submerged arc applications offers multi-process flexibility for semiautomatic and automatic welding.
- 500 amp output connections for excellent performance at lower amperages.
- Single range control - for precise output control and easy operation.
- Terminal strip and output studs - for remote connections and cable.
- Low profile case - allows installation under a workbench and for stacking up to 2 machines to conserve floor space.
Disclaimers
Service Information
What's Included
- Idealarc DC-1000 power source
Documentation
CAD Files
You May Also Need
Specifications
Product Weights & Dimensions
| Dimensions (H x W x D) | 30.7 in x 22.25 in x 39 in (781 mm x 565 mm x 991 mm) |
| Net Weight | 821 lbs (372 kg) |
Machines
| Machines Processes | Stick (SMAW) Flux-Cored (FCAW) Submerged Arc (SAW) |
| Max Rating | 1300 |
| Machines Communication Technology | analog |
| Wire Feeder Supply Voltage | 115VAC |
| Amphenol Pins (type of connector) | Terminal Strip |
| Work Lead Connector Type | Lug |
Basic Specification
| Input Voltage | 230/460 |
| Input Current | 193/96.5A |
| Input Hertz | 60 |
| Input Power | 230/460/3/60 |
| Input Phase | 3 |
| Mode Icon | CC/CV |
| Output Range | 150-1300A DC,16-46V |
| Polarity | DC |
| Rated Output | 1000A/44V/100% |
Application
| Typical Application | Heavy Fabrication |
Warranty
| Warranty | 3 Years |
