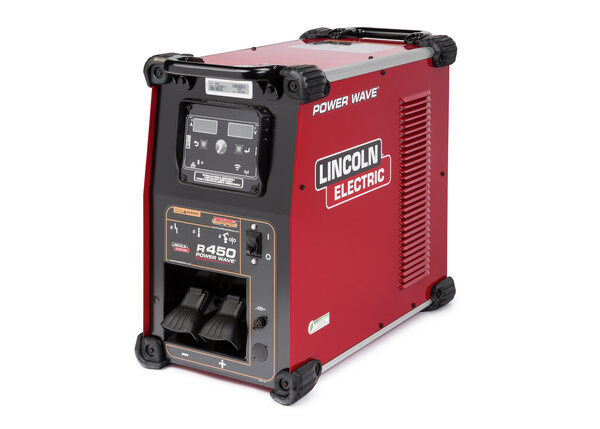

Power Wave® R450 Robotic Power Source
K3451-1
Power Wave R450 robotic power source is a welding system with the fastest travel speeds, lowest spatter generation, superior gap bridging, & excellent penetration profiles.
Model
Select Model
-
R450 Robotic Power Source
Power Wave R450 robotic power source is a welding system with the fastest travel speeds, lowest spatter generation, superior gap bridging, & excellent penetration profiles.
K3451-1
-
R450 Robotic Power Source with Wi-Fi & Bluetooth
Power Wave R450 robotic power source is a welding system with the fastest travel speeds, lowest spatter generation, superior gap bridging, & excellent penetration profiles.
K3451-2
-
R450 CE Robotic Power Source
Power Wave R450 robotic power source is a welding system with the fastest travel speeds, lowest spatter generation, superior gap bridging, & excellent penetration profiles.
K3455-1
MSRP
USD $19,741.00/EA
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
INDUSTRY'S MOST CAPABLE 450A ROBOTIC POWER SOURCE
High Performance Welding System
- Industry leading - fastest travel speeds, lowest spatter generation, superior gap bridging, & excellent penetration profiles.
- Fastest cycle times made possible with the world’s fastest robotic interface - ArcLink®
- Join the widest range of material thicknesses from 0.6mm and greater
- Equipped with the most comprehensive portfolio of welding modes including Nickel, Stainless, Low and High Alloy
Increase productivity through system data
- Track essential welding data with Lincoln Electric’s CheckPoint® production monitoring solution.
- Support QA initiatives with traceability metrics down to the actual part and operator level
Improve quality and reduce cost
- Favorites Mode list - Customize the machine for your work environment - to keep setup simple.
- Energy Saving Mode - machine draws less than 50W in Hibernate Mode - reducing operation costs Robot manufacturer dependent
Features
- Waveform Control Technology delivers industry leading robotic welding performance
- PowerConnect technology for 200-600V input
- ArcLink plug and play capability with leading robot manufacturers
- CheckPoint production monitoring technology easily tracks essential welding and system data
Industry Leading 5 Year Warranty
For a full list of available welding processes and waveforms as well as software update details for Power Wave® advanced process welding systems, please visit:
www.PowerWaveSoftware.com
Disclaimers
Service Information
What's Included
- (1) Power Wave R450 Robotic Power Source
Documentation
CAD Files
You May Also Need
Specifications
Product Weights & Dimensions
| Dimensions (H x W x D) | 22.5 in x 14 in x 24.8 in (571 mm x 355 mm x 630 mm) |
| Net Weight | 150 lbs (68 kg) |
Machines
| Max Rating | 550 |
| Amphenol Pins (type of connector) | 5 14 |
Wire and TIG Feeders
| Communication Technology | ArcLink |
| Accesories Communication Connector Type | 12-pin |
Basic Specification
| Input Voltage | 200/208,220/230/240,380/400/415,460,575 |
| Input Current | 40% Duty Cycle: 80/73/41/37/29 ,100% Duty Cycle: 60/54/30/27/21 |
| Input Hertz | 50,50/60,60 |
| Input Power | 208/230/380-415/460/575/3/50/60 |
| Input Phase | 3, Limited Single Phase Capability for 208/230 |
| Mode Icon | CC/CV |
| Output Range | 5-550A |
| Polarity | DC |
| Rated Output | GMAW: 550A/41.5V/40%,GMAW: 450A/36.5V/100%,GTAW-DC: 550A/32V/40%,GTAW-DC: 450A/28V/100% |
Warranty
| Warranty | 5 Years |
