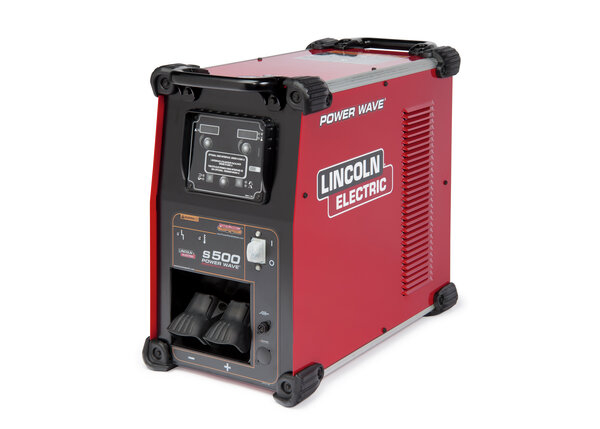

Power Wave® S500 Advanced Process Welder
K2904-1
The Power Wave® S500 Advanced Process Welder provides premium high-output multi-process capabilities with fast and optimized arc response for a wide range of applications.
Model
Select Model
-
Power Wave® S500 Advanced Process Welder & Power Feed® 84 Ready-Pak®
The Power Wave® S500 & Power Feed® 84 Ready-Pak® comes assembled and ready to weld within minutes - providing high-output premium multi-process capabilities with fast and optimized arc response for a wide range of applications.
K3187-2
-
Power Wave® S500 Advanced Process Welder
The Power Wave® S500 Advanced Process Welder provides premium high-output multi-process capabilities with fast and optimized arc response for a wide range of applications.
K2904-1
-
Power Wave® S500 CE Advanced Process Welder
The Power Wave® S500 Advanced Process Welder provides premium high-output multi-process capabilities with fast and optimized arc response for a wide range of applications.
K3168-1
-
Power Wave® S500 Advanced Process Welder & Power Feed® 84 One-Pak®
The Power Wave® S500 & Power Feed® 84 One-Pak® comes ready to weld within minutes - providing high-output premium multi-process capabilities with fast and optimized arc response for a wide range of applications.
K3186-2
MSRP
USD $14,152.00/EA
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
PORTABLE, POWERFUL, MULTI-PROCESS
The multi-process Power Wave® S500 is packed with Lincoln Electric performance technology and innovation. Built to be the best in class advanced process welding machine, the Power Wave® S500 features advanced welding waveforms optimized to provide the highest quality arc for nearly any application.
Features
- Modular Platform - Allows for system customization to your welding needs. Modules can be stacked directly beneath power source for clean and convenient configuration whether stationary or on a cart.
- Advanced Connectivity and Control - All Power Wave®systems come standard with access to Lincoln Electric Power Wave®Manager and Lincoln Electric Checkpoint®Production Monitoring allowing for advanced remote configuration, process control, and quality assurance.
- Compact and Durable - IP23 rated to withstand harsh environments.
- Patented PowerConnect®Technology - Automatically adjusts to input power from 200-600V, 50 or 60 Hz, single phase or three phase. Welding output remains constant through the entire input voltage range.
- Tribrid®Power Module - Exceptional welding performance with high power factor and efficiency.
- 115V (10A) AC Duplex Auxiliary Power Receptacle - Features patent-pending Surge Blocker™Technology to ensure simultaneous welding performance is not compromised by high starting current devices such as grinders (typically requiring 60A or more peak surge current).
- Smart Fan Operation - Only runs when needed to minimize noise and energy consumption.
Industry Leading 5 Year Warranty
For a full list of available welding processes and waveforms as well as software update details for Power Wave®advanced process welding systems, please visit:
www.PowerWaveSoftware.com
Disclaimers
Service Information
What's Included
- Power Wave®S500 Advanced Process Welder
Documentation
CAD Files
You May Also Need
Specifications
Product Weights & Dimensions
| Dimensions (H x W x D) | 22.5 in x 14.0 in x 24.8 in (571 mm x 355 mm x 630 mm) |
| Net Weight | 150 lbs (68.04 kg) |
Machines
| Max Rating | 550 |
| Data Technologies | Ethernet |
| Machines Communication Technology | ArcLink |
| Amphenol Pins (type of connector) | 5 |
Basic Specification
| Input Voltage | 200/208,220/230/240,380/400/415,460,575 |
| Input Current | 3PH/40% - 80/73/41/37/29A,3PH/100% - 60/54/30/27/21A |
| Input Hertz | 50,50/60,60 |
| Input Power | 208/230/380/415/460/575/3/50/60 |
| Input Phase | 3 |
| Mode Icon | CC/CV |
| Output Range | 5-550A DC |
| Polarity | DC |
| Rated Output | 550A/41.5/40% |
Warranty
| Warranty | 5 Years |
