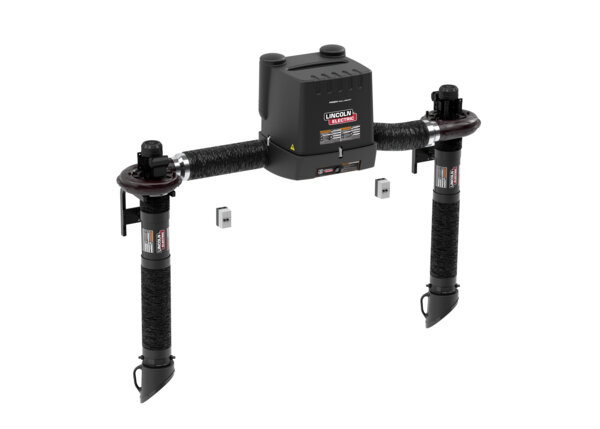

Prism® Wall Mount MERV 14 Dual Arms One Paks®
Prism Wall Mounted One Paks include the Prism Base Unit with Disposable MERV 14 Filter, two Prism 2400 1 HP Stationary Fans, and two fume extraction arms.
Model
Select Model
-
Dual 10 ft. Flexible Arms, Starter/ Overload
Prism Wall Mount One-Pak with MERV 14 filter comes with two Prism 2400 stationary fans, two starter/ overload switches, and dual flexible 10 ft. arms. Capable of providing 1200 SCFM in dual arm configuration.
K4261-8
-
Dual 10 ft. Flexible Arms, Arc Sensor
Prism Wall Mount One-Pak with MERV 14 filter comes with two Prism 2400 stationary fans, two Arc Sensor/ Lamp Kits, and dual flexible 10 ft. arms. Capable of providing 1200 SCFM in dual arm configuration.
K4261-12
-
Dual 13 ft. Flexible Arms, Starter/ Overload
Prism Wall Mount One-Pak with MERV 14 filter comes with two Prism 2400 stationary fans, two starter/ overload switches, and dual flexible 10 ft. arms. Capable of providing 1200 SCFM in dual arm configuration.
K4261-9
-
Dual 5-8 ft. Telescopic Arms, Starter/ Overload Switch
Prism Wall Mount One-Pak with MERV 14 filter comes with two Prism 2400 stationary fans, two starter/overload switches, and dual telescopic 5-8 ft. counter-weight arms. Capable of providing 1200 SCFM is dual arm configuration.
K4261-11
-
K1654-5 Prism® Wall Mount w/ MERV 14 Dual Arm Welding Fume Extractor Base Unit
Prism® Wall Mount w/ MERV 14 Dual Arm Welding Fume Extractor Base Unit
K1654-5
-
Dual 13 ft. Flexible Arms, Arc Sensor
Prism Wall Mount One-Pak with MERV 14 filter comes with two Prism 2400 stationary fans, two Arc Sensor/ Lamp Kits, and dual flexible 13 ft. arms. Capable of providing 1200 SCFM in dual arm configuration.
K4261-18
-
Dual 4-6 ft. Telescopic Arms, Starter/ Overload Switch
Prism Wall Mount One-Pak with MERV 14 filter comes with two Prism 2400 stationary fans, two starter/overload switches, and dual telescopic 4-6 ft. counter-weight arms. Capable of providing 1200 SCFM is dual arm configuration.
K4261-19
-
Dual 4-6 ft. Telescopic Arms, Arc Sensor/ Lamp Kit
Prism Wall Mount One-Pak with MERV 14 filter comes with two Prism 2400 stationary fans, two Arc Sensor/ Lamp Kits, and dual telescopic 4-6 ft. counter-weight arms. Capable of providing 1200 SCFM is dual arm configuration.
K4261-20
-
Dual 5-8 ft. Telescopic Arms, Arc Sensor/ Lamp Kit
Prism Wall Mount One-Pak with MERV 14 filter comes with two Prism 2400 stationary fans, two starter/overload switches, and dual telescopic 5-8 ft. counter-weight arms. Capable of providing 1200 SCFM is dual arm configuration.
K4261-21
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS
FUMES DON’T STAND A CHANCE
The Prism Wall Mount units are stationary, wall-mounted low vacuum systems intended for light to medium duty extraction and filtration of welding fume. Ideal for job shops, welding schools and maintenance departments, the Prism Wall Mount unit is designed for facilities with fixed work stations and limited floor space. The One-Pak packages help simplify the selection process.
Features
- Generous Airflow - Comes with Prism 2400 Fan (115V, 1 Phase, 60 Hz, 1 HP) that have self-cleaning concave blades and provide a 735 CFM with Prism Flexible 13 ft. Extraction Arm
- Choice of Dual Arms:
- Flexible Arm - The arm is at a set length (10 or 13 ft.) and can be combined with an optional extension crane
- Telescopic Arm - Has the ability to move in and out of the normal position. Available in 4-6 ft. and 5-8 ft. lengths.
- Choice of Starting Controls:

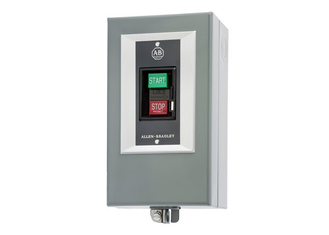

- Starter/Overload Switch - Provides simple on/off operation when an Arc Sensor/Lamp Kit
- Arc Sensor/ Lamp Kit - Turns the fan on when the arc flash is sensed. Hood-mounted lamp/fan switch allows for easy manual light/fan operation
- Disposable MERV 14 Filter - 3D pleated filter structure with 538 ft² (50 m²) capacity
- Spark Arrestor - Functions as a pre-filter for larger-sized particulate
Typical Applications
- Industrial Applications such Automotive
- Light and General Fabrication
- Education
- Maintenance
- Job Shops
