Invertec® V276 (Tweco)
K4868-1
Weather-Resistant Stick and TIG Welder
Model
Select Model
-
Invertec V276 (Tweco)
Weather-Resistant Stick and TIG Welder
K4868-1
-
Invertec V276 (Twist Mate)
Weather-Resistant Stick and TIG Welder
K4868-2
MSRP
USD $3,930.00/EA
Lincoln Electric Business Partner?
Sign in to view your priceDETAILS

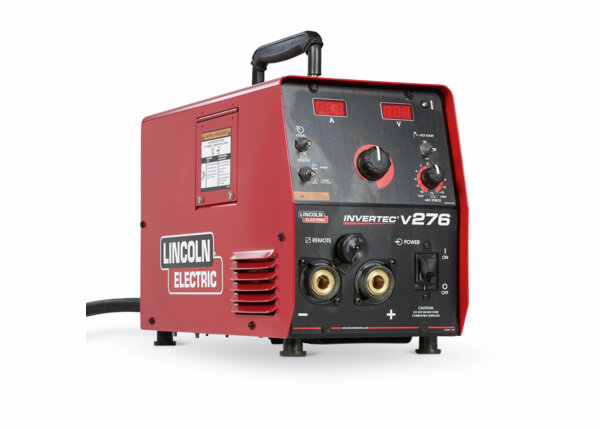

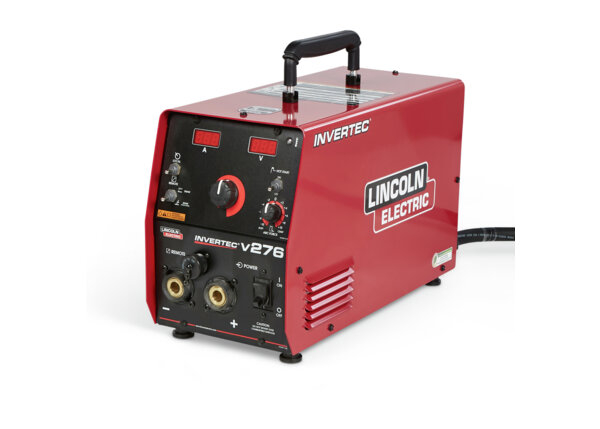

The Invertec® V276 stick and TIG power source is ideal for outdoor construction applications. This small package delivers outstanding performance on a wide range of electrode types and sizes. Plus it is built rugged enough to handle the toughest construction sites.
Features
- Outstanding AWS E6010 and E7018 performance - using up to 7/32 in. (5.5 mm) diameter electrode that enables both whip and drag techniques.
- Touch Start TIG® - allows the welding arc to be established without high frequency starting
- Air carbon arc cutting and gouging - with up to 3/16 in. (4.8 mm) diameter carbon electrode.
- Selectable Hot Start Turn it on for an extra boost of output to help you fire off and prevent sticking to the work piece.
Disclaimers
Service Information
What's Included
- Invertec V276 Power Source
- 10 ft. Input Power Cable
Documentation
You May Also Need
Specifications
Product Weights & Dimensions
| Dimensions (H x W x D) | 13.6 in x 9 in x 20.25 in (345 mm x 229 mm x 514 mm) |
| Net Weight | 54 lbs (24.49 kg) |
Machines
| Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) |
| Amphenol Pins (type of connector) | 6 |
| Work Lead Connector Type | Tweco |
Basic Specification
| Input Voltage | 208/230/380/415/460/575 VAC |
| Input Hertz | 50/60 Hz |
| Input Phase | Single or Three Phase |
| Output Range | 20-275 A |
| Rated Output | 275A/31V/35% 250A/30V/60% 200A/28V/100% |
Application
| Typical Application | Construction Construction & Field Erection Maintenance & Repair Repair Welding Structural Fabrication Structural Welding |
Warranty
| Warranty | 3 Years Standard |
