MIG Family

Diameters / Packaging

Diameters
 33 lb Spool
 44 lb Spool
 44 lb Spool Buy America
 60 lb Spool

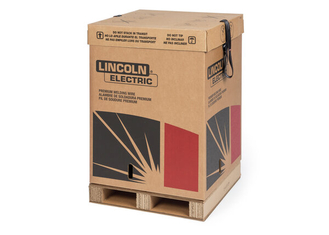

 500 lb Accu-Pak® Box
 500 lb Infinity-Pak®
 900 lb Accu-Pak® Box
 1000 lb Accu-Pak® Box
 1000 lb Accu-Pak® Box Buy America
 1000 lb Infinity-Pak
 1000 lb Precise-Trak® Reel
0.035 in (0.9 mm) ED034270 ED032366,ED033033 ED032894 ED034402 ED032861
0.040 in (1.0 mm) ED032895
0.045 in (1.1 mm) ED034271 ED032367 ED032896 ED032863 ED033215 ED032808
0.052 in (1.3 mm) ED034272 ED032368 ED034430 ED032814 ED032897 ED032864 ED034431
1/16 in (1.6 mm) ED034356 ED036220,ED032968 ED032865

SuperArc® L-59®

MIG (GMAW)

CLASSIFICATIONS:
ER70S-6

SuperArc® L-59® from Lincoln Electric is a copper coated, mild steel, engineered alloy MIG wire.

Diameter

Select Diameter

  • 0.035 in (0.9 mm)
  • 0.040 in (1.0 mm)
  • 0.045 in (1.1 mm)
  • 0.052 in (1.3 mm)
  • 1/16 in (1.6 mm)

Package

Select Package

  • 33 lb Spool
  • 44 lb Spool
  • 44 lb Spool Buy America
  • 60 lb Spool
  • 500 lb Accu-Pak® Box
  • 500 lb Infinity-Pak®
  • 900 lb Accu-Pak® Box
  • 1000 lb Accu-Pak® Box
  • 1000 lb Accu-Pak® Box Buy America
  • 1000 lb Infinity-Pak
  • 1000 lb Precise-Trak® Reel
Buy Now

DETAILS

A copper coated, mild steel, engineered alloy MIG wire that leads the industry in arc performance, wire feedability and consistency, as well as extending contact tip life.

Features

  • Engineered alloy system enhances silicon island management
  • Minimal spatter
  • Copper coated for long contact tip life
  • Fast travel speeds
  • MicroGuard® Ultra provides superior feeding and arc stability

Typical Applications

  • Robotic or hard automation
  • Automotive
  • Pipeline & Offshore
  • Pressure vessels
  • Heavy fabrication

Welding Positions

  • All

Shielding Gas

  • Mixed Shielding Gas|100% CO2

Disclaimers

Warning -

Cancer and Reproductive Harm -

www.P65Warnings.ca.gov

Service Information

Documentation

You May Also Need

SuperArc MIG wire, Steel Spool

SuperArc® L-56® MIG (GMAW) Wire

ED025945
500 Accu-Pak box, 1000 Accu-Pak Box

SuperArc® L-59®

ED032861
500 Accu-Pak box, 1000 Accu-Pak Box

SuperArc® L-59®

ED032863
500 Accu-Pak box, 1000 Accu-Pak Box

SuperArc® L-59®

ED032894
View All

BEFORE USE, READ AND UNDERSTAND THE SAFETY DATA SHEET (SDS) FOR THIS PRODUCT AND SPECIFIC INFORMATION PRINTED ON THE PRODUCT CONTAINER. SDS Search page

See test result disclaimer

CONFORMANCE

CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.18 ER70S-6
ABS ABS - Part 2 3YSA H5
BV BV - Chapter 5 SA3YHHH
CWB CSA W48 B-G 49A 3 C1 S6, B-G 49A 3 C1 S6 (B-G 49A 3 C G6)
DNV-GL DNV - 2.9 III Y40MS H5
DB ISO 14341-A G 42 3 C1 3Si1, G 46 4 M21 3Si1
LR LR - Chapter 11 3YS H5
MIL MIL-E-23765/1D MIL-70S-6

MECHANICAL PROPERTIES

Classification Shielding Gas Polarity Yield Strength @ 0.2% Offset
MPa (ksi) 		Tensile Strength
MPa (ksi) 		Elongation
% 		Charpy V-Notch
J (ft-lbs) @ -30°C (-20°F) 		Charpy V-Notch
J (ft-lbs) @ -40°C (-40°F)
ER70S-6 Requirement 100% CO2 DC+ 400 (58) min. 480 (70) min. 22 min. 27 (20) min.
Typical Result, As-welded 100% CO2 DC+ 430 (62) 540-580 (78-83) 24 33-89 (24-66)
Typical Result, As-welded 90% Ar, 10% CO2 DC+ 500 (72) 610 (88) 23 80-91 (59-67)

WIRE COMPOSITION

Classification %C %Cr %Mn %Mo %Ni %P %S %Si %V %Total Cu
ER70S-6 Requirement 0.06 - 0.15 0.15 max. 1.40 - 1.85 0.15 max. 0.15 max. 0.025 max. 0.035 max. 0.80 - 1.15 0.03 max. 0.50 max.
Typical Result 0.07-0.10 0.02-0.05 1.42-1.49 0.01 0.01-0.02 0.005-0.010 0.017-0.027 0.81-0.89 0.005 max. 0.12-0.23

TYPICAL OPERATING PROCEDURES

Diameter Transfer Mode Shielding Gas Polarity CTWD
mm (in.)⁽¹⁾ 		Wire Feed Speed
m/min (in/min) 		Voltage
volts 		Approx. Current
amps 		Melt-off Rate
kg/hr (lb/hr)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾ 75% Ar / 25% CO2 DC+ 12 (1/2) 2.5 (100) 17 80 0.7 (1.6)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾ 75% Ar / 25% CO2 DC+ 12 (1/2) 3.8 (150) 18 120 1.1 (2.4)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾ 75% Ar / 25% CO2 DC+ 12 (1/2) 6.4 (250) 20 175 1.8 (4.0)
0.035 in (0.9 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 19 (3/4) 9.5 (375) 23 195 2.7 (6.0)
0.035 in (0.9 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 19 (3/4) 12.7 (500) 29 230 3.6 (8.0)
0.035 in (0.9 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 19 (3/4) 15.2 (600) 30 275 4.4 (9.6)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾ 75% Ar / 25% CO2 DC+ 12 (1/2) 3.2 (125) 18 145 1.5 (3.4)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾ 75% Ar / 25% CO2 DC+ 12 (1/2) 3.8 (150) 19 165 1.8 (4.0)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾ 75% Ar / 25% CO2 DC+ 12 (1/2) 5.1 (200) 20 200 2.4 (5.4)
0.045 in (1.1 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 19 (3/4) 8.9 (350) 27 285 4.2 (9.2)
0.045 in (1.1 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 19 (3/4) 12.1 (475) 30 335 5.7 (12.5)
0.045 in (1.1 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 19 (3/4) 12.7 (500) 30 340 6.0 (13.2)
0.052 in (1.3 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 19 (3/4) 7.6 (300) 30 300 4.8 (10.6)
0.052 in (1.3 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 19 (3/4) 8.1 (320) 30 320 5.2 (11.5)
0.052 in (1.3 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 19 (3/4) 12.3 (485) 32 430 7.8 (17.1)
1/16 in (1.6 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 19 (3/4) 5.3 (210) 25 325 4.8 (10.7)
1/16 in (1.6 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 19 (3/4) 6.0 (235) 27 350 5.4 (12.0)
1/16 in (1.6 mm) Spray Transfer 90% Ar / 10% CO2 DC+ 19 (3/4) 7.4 (290) 28 430 6.7 (14.8)

NOTES

Note
⁽¹⁾ CTWD (Contact Tip to Work Distance). Subtract 1/4 in. (6.4 mm) to calculate Electrical Stickout.
⁽²⁾ Procedures in these areas are procedures for short circuiting mode using 75% Argon, 25% CO2. NOTE: For 100% CO2 procedures, add 1 to 2 volts for short circuit transfer and 2 to 3 volts for globular transfer.
